Second focal plane scopes have a reticle that is maintained constant throughout the entire magnification range. Therefore the target image becomes larger, as the magnification increases, yet the reticle lines stay the same size.
Different reticle widths are available. You can choose the reticle that suits your needs. A thin reticle works well for small aiming marks as the reticle width will be smaller than your aiming mark. Each reticle option will state the reticles width in the Specifications.
Generally SFP reticles are thinner than first focal plane reticles. The thickness of the line and the dot does not change in size, nor does its appearance, as you increase the magnification of the SFP scope.
Below is a formula to determine the amount of the target that the reticle line and dot thickness will cover for each power of magnification on any Second Focal Plane scope. You need to use the reticle dimensions given on the reticle diagram for your scope and note at which magnification the dimensions apply too. The dimensions given are only accurate at the magnification stated.
For instance, the MTR-5 reticle will look as shown in the lower right hand corner of the diagram at 10x (10 magnification/power). And the reticle will appear like that on your target only when the magnification is set at 10x.
As you change the magnification of the scope the amount of the target that is covered by the line and the dot will also change.
To calculate the amount of the target that will be covered by the reticle line or dot at any magnification; use the reticle line size given in MOA and multiply it by the magnification given. Then divide that number by the magnification for which you desire to know how much of the target will be covered by the reticle line or the dot. That resultant will be the amount of area measured in MOA that the reticle line or dot will cover on the target.
The MTR-5 reticle diagram is illustrated at 10x (10 magnification). When set at 10x magnification the reticle line covers 0.2 MOA. At 100 yards (approximately .2 inches) and the dot covers 0.5 MOA at 100 yards (approximately .5 inches). The following calculation is to determine the MOA coverage of the line and dot at 60x:.2 x 10 = 2 divided by 60 = .03 MOA.Therefore at 60 magnification the reticle line covers aproximately .03 inches at 100 yards. As the target gets farther away it's image becomes smaller and the line then covers more of the target.Therefore at 60x at 1000 yds the reticle lines, horizontal and vertical will cover .03 MOA x 10 (One hundred yard intervals) = 0.3 MOA (approximately .3 inches) coverage of the 5 inch X ring on a F Open Class target at 1000 yds.
The same theory applies to the amount of coverage of the Dot on a target at any magnification setting that you choose to set your scope.MTR-5: The Dot size given is 0.5 MOA x 10 magnification = 5. Five divided by 60 magnification = .083 MOA. Therefore when the magnification is set at 60 power; at 1000 yds the Dot will cover .083 x 10 = approximately .83 inches of the 5 inch X ring on a F Open Class target. It will actually be .8725 inches; as one MOA will actually cover 1.047 inches at 100 yds. The answer will be in MOA.
At any magnification setting, the reticle will cover more of the target as the distance increases because the target gets smaller as the distance increases.MTR-5 example: The reticle line size given is .2 MOA x 10 magnification = 2.Two divided by 60 magnification = approximately .03 MOA.
As you can see above the amount of the target that the reticle covers becomes smaller as you increase the magnification of the scope. It is easy to center an approximate one inch dot in the middle of a 5 inch aiming mark as it gives about 2 inches on each side of the dot too the edge of the 5 inch aiming mark/ X ring. The distance between the Dot and the edge of the aiming ring is about twice the width that the Dot covers. Makes for an easy comparison and centering. With the thinner MTR-2 reticle and dot; the Dot on the 5 inch aiming mark at 1000yds would cover less than half and inch (.43625”). The reticle thickness will also be half as thick at about .150 inches.A rough approximation is:.03 inches at 100yds.06 inches at 200yds.09 inches at 300 yds.12 inches at 400ydsand so on.At 25 magnification:.2 moa x 10 = 2 divided by 25 = .08 MOA.Coverage at 400yds:.08 x 4 = .32 inches
Please e-mail us at samira@marchscopes.ca
to place your order. Unless you are picking up at our headquarters, we will need your telephone number and shipping address. Adult signature is required upon delivery.
Alternatively, you can also place your order by calling us at +1.403.236.0032
We accept payment by e-mail transfer, cash, bank draft, money order, postal money order, debit and credit card.

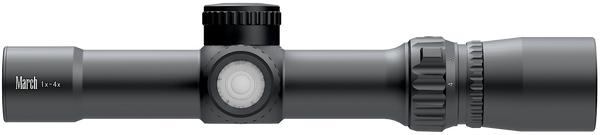

COMPACT & LIGHT. Excellent choice for short and middle range quarry, including moving targets.
• TOTAL ELEVATION TRAVEL: 56 MIL
• FOCUS DISTANCE: 100yd
• LENGTH: 258mm (10.16inch)
• WEIGHT: 490g (17.28oz)
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
SPECIAL ORDERS TAKE 9-12 WEEKS

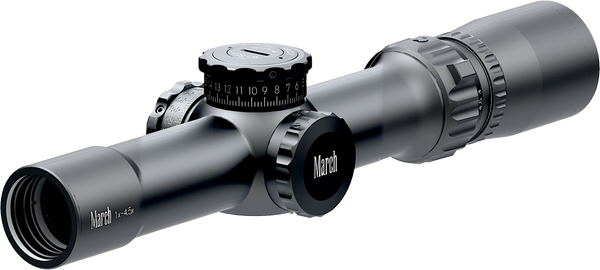

COMPACT & LIGHT. Designed for Service Rifle Competions
• TOTAL ELEVATION TRAVEL: 200 MOA
• FOCUS DISTANCE: 10yd - infinity
• LENGTH: 260mm (10.24inch)
• WEIGHT: 500g (17.64oz)
D4.5V24TM MOA Reticles:
Regular: $ 2,835.00
Sale Price: $ 2,693.25
Learn about the NEW MTR-D3 reticle and specifications: https://marchscopes.com/news/3173/
SPECIAL ORDERS TAKE 9-12 WEEKS
Ultra Compact & Light Design. Light weight moving Game scope.
• TOTAL ELEVATION TRAVEL: 200 MOA
• 30mm DIAMETER BODY
• 24mm OBJECTIVE LENS
• FOCUS DISTANCE : 10yd - infinity
• WATER REPELLENT LENS COATING
• LENGTH: from 262mm (10.31inch)
• WEIGHT: from 500g (17.64oz)
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
SPECIAL ORDERS TAKE 9-12 WEEKS
D10V24IML MIL Reticles
Regular: $ 3,078.00
Sale Price: $ 2,924.10
D10V24I MOA Reticles:
Regular: $ 3,078.00
Sale Price: $ 2,924.10
SPECIAL ORDERS TAKE 9-12 WEEKS
D10V24TIML MIL Reticles
Regular: $ 3,213.00
Sale Price: $ 3,052.35
D10V24TI MOA Reticles:
Regular: $ 3,213.00
Sale Price: $ 3,052.35
SPECIAL ORDERS TAKE 9-12 WEEKS

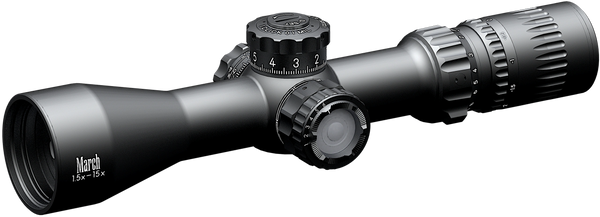

Light weight and compact 1.5-15x42 riflescope ideal for hunting and for precision semi-auto platforms. With day bright illuminated dot (on FD-1, FD-2 and MTR-5 reticles) for fast target acquisition.
• FAST FOCUS EYEPIECE
• FOCUS DISTANCE : 10yd - infinity
• ED glass
• WATER REPELLENT LENS COATING
• LENGTH: 268mm(10.6inch)
• WEIGHT: from 610g(21.51oz)
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
SPECIAL ORDERS TAKE 9-12 WEEKS
D15V42TIML MIL Reticles:
Regular: $ 3,820.50
Sale Price: $ 3,629.48
D15V42TI MOA Reticles:
Regular: $ 3,820.50
Sale Price: $ 3,629.48
TACTICAL ELEVATION TURRET & CAPPED WINDAGE TURRET
Modified to prevent accidental windage change.
D15V42TIML MIL Reticle:
Regular: $ 3,981.00
Sale Price: $ 3,781.95
D15V42TI MOA Reticle:
Regular: $ 3,981.00
Sale Price: $ 3,781.95
SPECIAL ORDERS TAKE 9-12 WEEKS

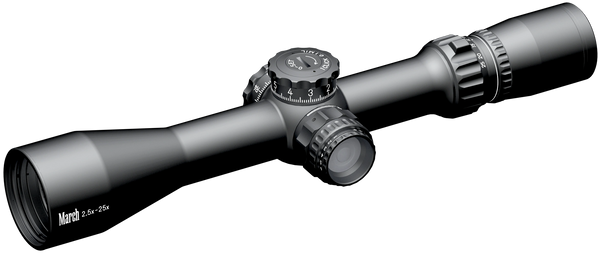

A compact 10x zoom ratio scope for a wide range of tactical and hunting applications.
• TOTAL ELEVATION TRAVEL: 27.5MIL / 100 MOA
• FOCUS DISTANCE : 10yd - infinity
• 30mm diameter body
• 42mm objective lens
• ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
• WEIGHT: from 595g (20.99oz)
D25V42IML MIL Reticle:
Regular: $ 3,591.00
Sale Price: $ 3,411.45
D25V42I MOA Reticles:
Regular: $ 3,591.00
Sale Price: $ 3,411.45
D25V42TIML MIL Reticles:
Regular: $ 3,726.00
Sale Price: $ 3,539.70
D25V42TI MOA Reticles:
Regular: $ 3,726.00
Sale Price: $ 3,539.70

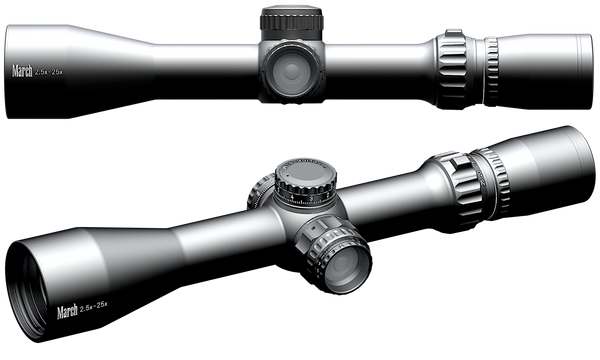

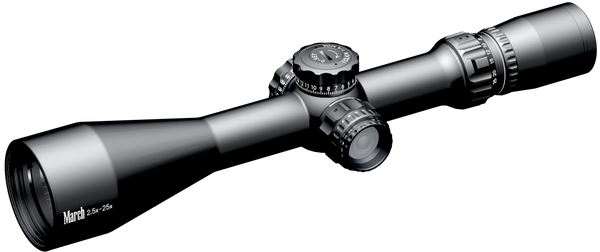

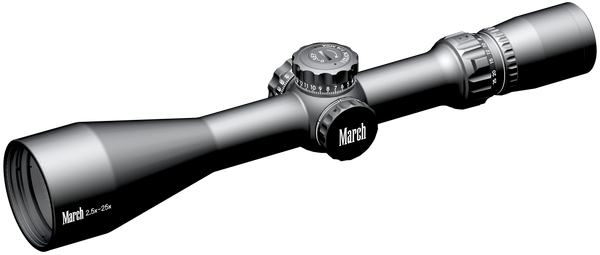

A compact 10x zoom scope for a wide range of tactical and hunting applications.
• FOCUS DISTANCE : 10yd - infinity
• 30mm diameter body
• 52mm objective lens
• ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D25V52T MOA Reticles:
Regular: $ 3,685.50
Sale Price: $ 3,501.23
[DU]
D25V52TML MIL Reticle:
Regular: $ 3,685.50
Sale Price: $ 3,501.23
[DU]
D25V52TM MOA Reticles:
Regular: $ 3,685.50
Sale Price: $ 3,501.23
SPECIAL ORDERS TAKE 9-12 WEEKS
D25V52IML MIL Reticles:
Regular: $ 3,928.50
Sale Price: $ 3,732.08
D25V52I MOA Reticles:
Regular: $ 3,928.50
Sale Price: $ 3,732.08
SPECIAL ORDERS TAKE 9-12 WEEKS
D25V52TIML MIL Reticles:
Regular: $ 4,063.50
Sale Price: $ 3,860.33
D25V52TI MOA Reticles:
. about Dec. 9 [126]
Regular: $ 4,063.50
Sale Price: $ 3,860.33
TACTICAL ELEVATION TURRET & CAPPED WINDAGE TURRET
Modified to prevent accidental windage change
D25V52TI MOA Reticle:
Regular: $ 4,225.50
Sale Price: $ 4014.23
SPECIAL ORDERS TAKE 9-12 WEEKS

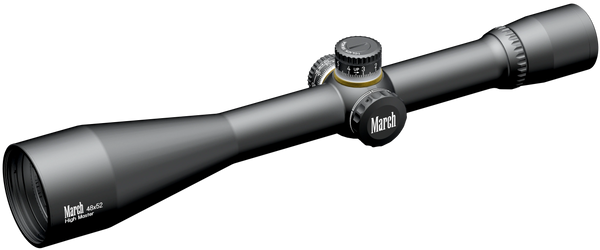

The fixed power High Master 48x52mm scope is the ultimate fixed power scope. Using Super ED (Extra-low Dispersion) lens and high-refractive glass, it offers superior image quality and clarity right to the edge of the lens. Specially designed for Benchrest shooting.
• TOTAL ELEVATION TRAVEL: 60MOA
• FOCUS DISTANCE : 10yd - infinity
• 30mm diameter body
• 52mm objective lens
• ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
• WEIGHT: 635g (22.4oz)
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D48F52 MOA Reticles:
Regular: $ 2,956.50
Sale Price: $ 2,808.68
SPECIAL ORDERS TAKE 9-12 WEEKS
The 56mm objective and the 34 mm tube offer high resolution with excellent reliability and ruggedness.
• TOTAL ELEVATION TRAVEL: 60MOA
• FOCUS DISTANCE : 10yd - infinity
• 34mm diameter body
• 56mm objective lens
• ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D50V56T MOA Reticles:
Regular: $ 4,347.00
Sale Price: $ 4,129.65
SPECIAL ORDERS TAKE 9-12 WEEKS
D50V56TI MOA Reticles:
Regular: $ 4,725.00
Sale Price: $ 4,488.75
SPECIAL ORDERS TAKE 9-12 WEEKS

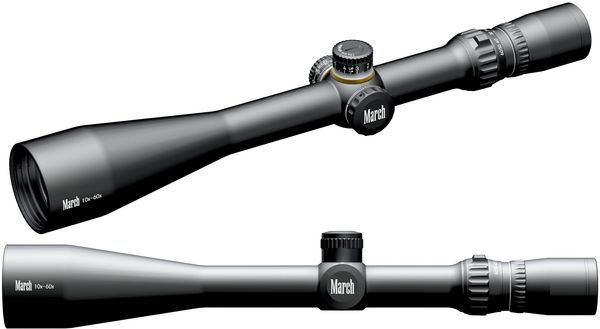

Lightweight scope with variable power, popuIar for benchrest shooting. The 52mm objective and the 30mm tube offer high resolution with excellent reliability and ruggedness.
• TOTAL ELEVATION TRAVEL: 60MOA
• FOCUS DISTANCE : 10yd - infinity
• 30mm diameter body
• 52mm objective lens
• ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D60V52L MOA Reticles:
Regular: $ 3,712.50
Sale Price: $ 3,526.88
D60V52LM MOA Reticles:
Regular: $ 3,712.50
Sale Price: $ 3,526.88
SPECIAL ORDERS TAKE 9-12 WEEKS
D60V52T MOA Reticles:
Regular: $ 3,847.50
Sale Price: $ 3,655.13
D60V52TM MOA Reticles:
Regular: $ 3,847.50
Sale Price: $ 3,655.13
SPECIAL ORDERS TAKE 9-12 WEEKS
D60V52TI MOA Reticles:
Regular: $ 4,225.50
Sale Price: $ 4,014.23
SPECIAL ORDERS TAKE 9-12 WEEKS

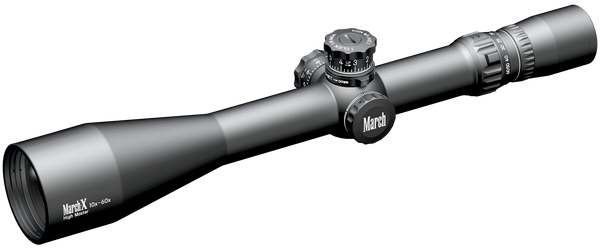

BEST LIGHTWEIGHT F-CLASS SCOPE IN THE WORLD.
Scopes in the High Master® Series have Super ED lenses with High Refractive Glass, which offers very high resolution and natural colour right to the edge of the image. The 56mm objective and the 34 mm tube offer excellent reliability, ruggedness and bright resolution.
• TOTAL ELEVATION TRAVEL: 60MOA
• FOCUS DISTANCE : 10yd - infinity
• 34mm diameter body
• 56mm objective lens
• Super ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
• WEIGHT: form 910g (32.10oz)
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D60HV56T MOA Reticles:
Regular: $ 4,644.00
Sale Price: $ 4,411.80
D60HV56TM MOA Reticles:
Regular: $ 4,644.00
Sale Price: $ 4,411.80
SPECIAL ORDERS TAKE 9-12 WEEKS
D60HV56TI MOA Reticles:
Regular: $ 5,022.00
Sale Price: $ 4,770.90
SPECIAL ORDERS TAKE 9-12 WEEKS
FOR BENCH REST AND F CLASS COMPETITION
We guarantee zero POA shift. Please note that the ocular lens extends when changing the magnification.
• TOTAL ELEVATION TRAVEL: 60MOA
• FOCUS DISTANCE : 10yd - infinity
• 30mm diameter body
• 52mm objective lens
• Super ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
• WEIGHT: 690g (24.34oz)
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D60EV52 MOA Reticles:
Regular: $ 3,564.00
Sale Price: $ 3,385.80
SPECIAL ORDERS TAKE 9-12 WEEKS

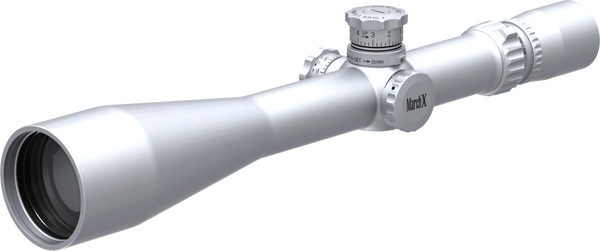

EXCELLENT CHOICE FOR IN AIR GUN, FIELD TARGET & F-CLASS
• TOTAL ELEVATION TRAVEL: 60MOA
• FOCUS DISTANCE : 10yd - infinity
• 34mm diameter body
• 56mm objective lens
• ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D80V56T MOA Reticles:
Regular: $ 4,644.00
Sale Price: $ 4,411.80
D80V56TM MOA Reticles:
Regular: $ 4,644.00
Sale Price: $ 4,411.80
SPECIAL ORDERS TAKE 9-12 WEEKS
D80V56TI MOA Reticles:
Regular: $ 5,022.00
Sale Price: $ 4,770.90
SPECIAL ORDERS TAKE 9-12 WEEKS

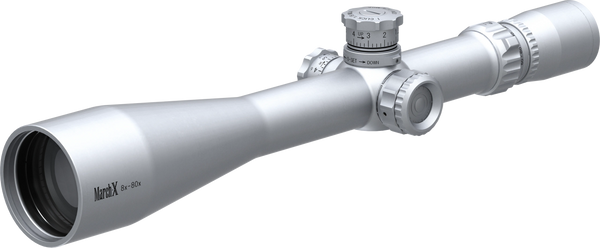

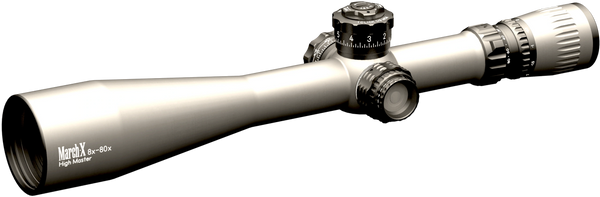

EXCELLENT CHOICE FOR IN AIR GUN, FIELD TARGET & F-CLASS
• TOTAL ELEVATION TRAVEL: 60MOA
• FOCUS DISTANCE : 10yd - infinity
• 34mm diameter body
• 56mm objective lens
• ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D80V56ST MOA Reticles:
Regular: $ 4,779.00
Sale Price: $ 4,540.05
D80V56STM MOA Reticles:
Regular: $ 4,779.00
Sale Price: $ 4,540.05
SPECIAL ORDERS TAKE 9-12 WEEKS
D80V56STI MOA Reticles:
Regular: $ 5,157.00
Sale Price: $ 4,899.15
SPECIAL ORDERS TAKE 9-12 WEEKS

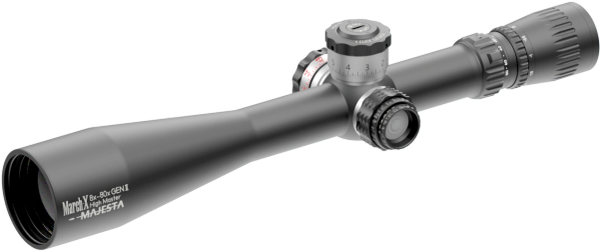

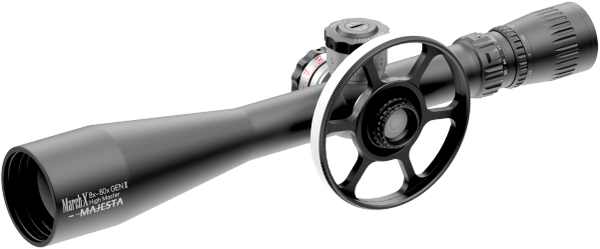

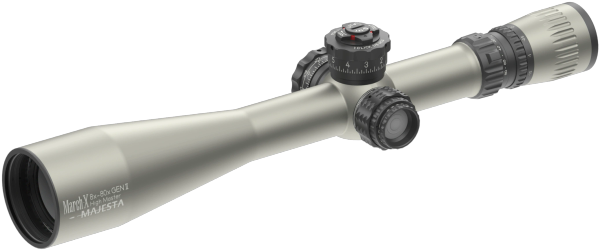

BEFORE ORDERING PLEASE HIT HERE TO READ IMPORTANT INFORMATION FROM THE MANUFACTURER.
• TOTAL ELEVATION TRAVEL: 19 MIL / 66MOA
• WIDE ANGLE EYEPIECE: 25˚
• ILLUMINATED ONLY
• High Master™ Super ED glass with transmittance very near to 100%
• WATER REPELLENT LENS COATING
• FOCUS DISTANCE : 10yd - infinity
• 34mm diameter body
• 56mm objective lens
• SHURIKEN LOCKS ON ELEVATION AND WINDAGE TURRETS
• BCOLOR SCOPE: Dark grey body with black turrets
Follow this LINK to read about the new Wide Angle Reticles for the 8-80×56mm High Master™ MAJESTA Scope, and this LINK to watch a video explaining the new 8-80×56mm High Master Wide Angle MAJESTA Scope.
CLICK ON THE HIGHLIGHTED PART NUMBER FOR SPECIFICATIONS
D80HV56WTIMLX-GR MIL Reticles:
Regular: $ 6,142.50
Sale Price: $ 5,835.38
D80HV56WTIX-GR MOA Reticles:
Regular: $ 6,142.50
Sale Price: $ 5,835.38
SPECIAL ORDERS TAKE 9-12 WEEKS
